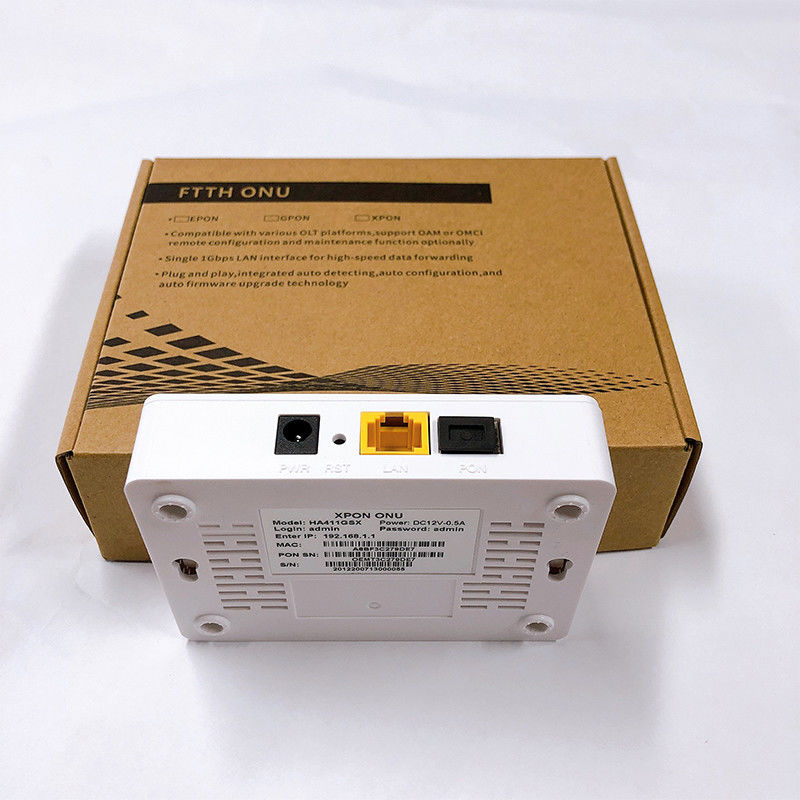

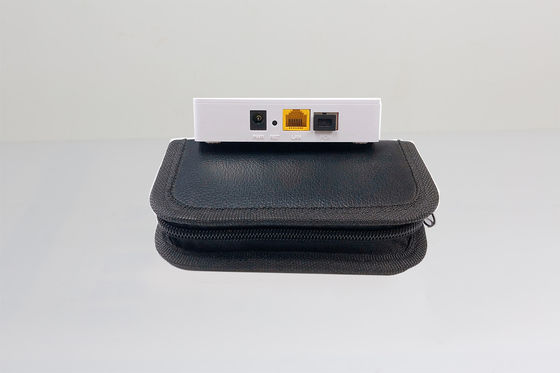

Product Details:
|
| Name: | Gpon Onu | Materital: | Plastic |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Color: | White |
| Type: | ONU/ONT | Power Supply: | DC12V |
| High Light: | Gigabit GPON ONU,One Pon GPON ONU,One Pon gpon ont modem |
||
(2) Support ONU auto-discovery/Link detection/remote upgrade of software
(3) Support Route PPPoE/DHCP/Static IP and Bridge mode
(4) Support IPv4/IPv6 dual mode
(5) Support Firewall function and IGMP multicast feature
(6) Support LAN IP and DHCP Server configuration
Technical Specification
|
Technical item |
Details |
|
Wavelength |
TX: 1310nm, RX: 1490nm |
|
Optical Interface |
SC/UPC Connector |
|
Chip Spec |
RTL9601D ,CPU 300MHz,DDR2 32MB |
|
Flash |
SPI Nor Flash 16MB |
|
LAN Interface |
1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 connector |
|
LED |
4 LED, For Status of PWR,LOS,PON,LINK/ACT |
|
Push-Button |
2,For Function of Power on/off,Reset |
|
Operating Condition |
Temperature: 0℃~+50℃ |
|
Humidity: 10%～90%(non-condensing) |
|
|
Storing Condition |
Temperature: -30℃~+60℃ |
|
Humidity: 10%~90%(non-condensing) |
|
|
Power Supply |
DC 12V/0.5A |
|
Power Consumption |
<3W |
|
Dimension |
120mmx78mmx30mm(L×W×H) |
|
Net Weight |
0.08Kg |
Working Environment
|
Pilot |
Status |
Description |
||
|
PWR |
On |
The device is powered up. |
||
|
Off |
The device is powered down. |
|||
|
PON |
On |
The device has registered to the PON system. |
||
|
Blink |
The device is registering the PON system. |
|||
|
Off |
The device registration is incorrect. |
|||
|
LOS |
Blink |
The device doses not receive optical signals. |
||
|
Off |
The device has received optical signal. |
|||
|
LINK/ACT |
On |
Port is connected properly (LINK). |
||
|
Blink |
Port is sending or/and receiving data (ACT). |
|||
|
Off |
Port connection exception or not connected. |
|||
FAQ
