Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp

Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp
Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp

Large Image :  Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp

Product Details:
Place of Origin: China, Guang dong
Brand Name: Hioso
Certification: CE, RoHS, CCC
Model Number: HA7302CST
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 38X23X25 cm
Delivery Time: 2-8 working days
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 5000/month
Contact Now

Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp

Description
Product Name: Epon Olt Pon Port: 2 SFP Fiber Ports
Uplink Ports: 2 1000M Ethernet RJ45 Ports Control Ports: RJ45 Console Port, To Debug The Device
Operating Wavelength: 1310(RX)/1490(TX) Mac: 8K
Warranty: 3 Years Management: Support CLI And GUI, SNMP, WEB

Product Description

Overview

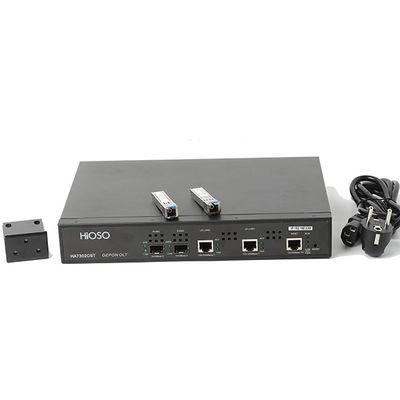

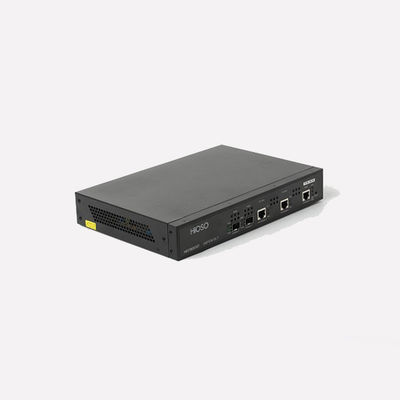

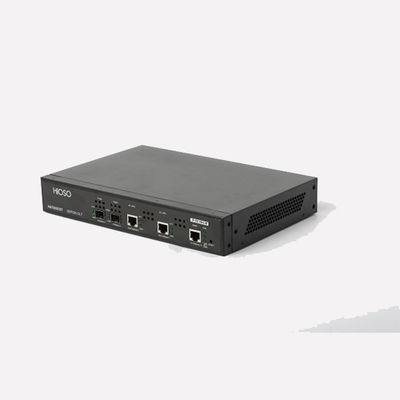

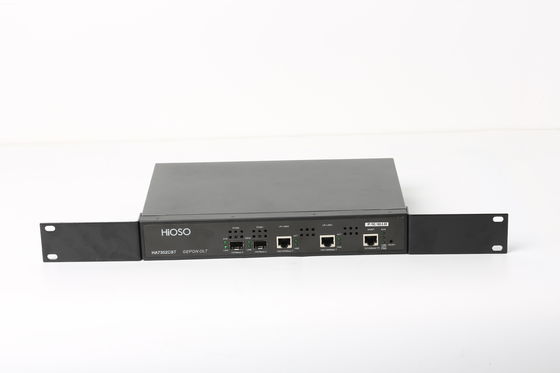

HA7302CST is a standalone 2-PON OLT,working with HA7200 series ONU and ODN, to establish a passive optic network. It supports 2-PON, 64 ONUs access (maximum 128). It supports 10～20km transmission distance at the base of high bandwidth, full line speed L2/L3 transition capacity. It supports WEB/SNMP/CLI management.

Features

Supply 2 SFP PON ports, 2 1000M RJ45 uplink ports, 1 10/100M RJ45 management port Support SNMP management and WEB management Each PON port support 1.32 split ratio, total 64 ONUs access,maximum 128 Distance can reach 20km under 1:32 split ratio,maximum 1:64 Support to work with HA400/HA7200 series ONUs to establish passive network 1U rack design, inside fan,better for heat dissipating and reliability operating Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access
Technical Specification
Parameter
Specifications
Operating wavelength
1310(RX)/1490(TX)
Optical power
+0 ~ +7dBm
Receiving sensitivity
-27dBm
Max distance
20km
Max splitter ratio
1:64
Capacity
2 PON, standard: 64 ONUs maximum:128 ONUs
MAC
8K
Uplink port
2 1000M Ethernet RJ45 ports
PON port
2 SFP fiber ports
Control port
RJ45 console port, to debug the device
MTBF
100,000 hours
EPON traits
Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)
Protocols supported
Support IEEE802.3, IEEE802.3u, IEEE802.3ab
Support IEEE802.1Q VLAN
Support IEEE 802.1P QoS
Management
CLI and GUI, SNMP, WEB

Support DHCP Snooping
Support Ipv4 address learning based at DHCP Snooping
Support ARP Snooping, QoS etc
Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp 0
Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp 1
Working Environment
Parameter
Specification
Power supply
AC220V
Power consumption
11W
Operating temperature
-10~55℃
Storage temperature
-40~70℃
Humidity
5%~90% non-condensing
Dimension
276mm(length) ×200mm(width) ×44mm(height)
Certification
Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp 2
Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp 3
Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp 4
Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp 5
Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp 6
Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp 7
Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp 8
Mini 2 Port Olt Gepon Supply Fttx Onu Including 2 SFP Px20+++ Web Snmp 9
