Product Details:
|
| APPLICATION: | EPON CHASSIS | SLOTS: | 1 For NMS Card, 8 For OLT Cards |
|---|---|---|---|
| Support: | 2PON And 4PON Card | Power: | AC220V/AC110V/DC48V |
| Height: | Standard 3U | ||
| High Light: | 3U height OLT Chassis,19 inch OLT Chassis,3U height gpon olt rack |
||
EPON OLT chassis 8 slots from 2pon to 32PON
Overview

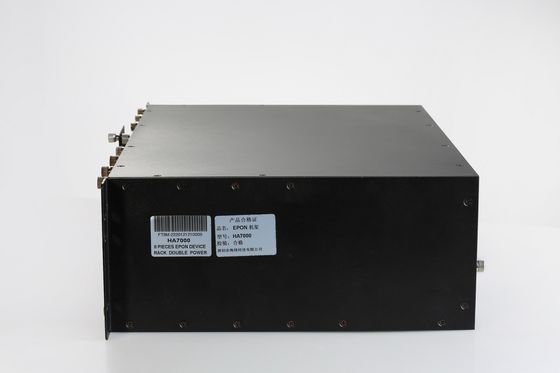

HA7000 is HIOSO EPON rack. HA7000 adopts 19 inch, 3U height rack, supports dual-power supply. The rack supports 8pcs HA7102CS/HA7104 OLT cards, from 2PON to 32PON ports.. Each PON supports 32pcs ONU access within 20KM (maximum 64pcs ONU access within 10KM). It supports integrated management through the network management card M7000.
Technical Specification
| Parameter | Specification |
| Slots | 8 slots for OLT cards, 1 slot for NMS card M7000 |
| Working temperature | -10～55℃ |
| Storage temperature | -40～70℃ |
| Humidity | 5%～90% non-condensing |
| Power supply qty | 2 |
| Weight | 10.69kg |
| Power supply | Dual power AC220V/DC-48V or AC220V+DC-48V (DC12V 20A or DC 5V 20A) |
| Dimension | 132mm(H) ×481mm(W) ×309mm(D) |
Order information
| Product code | Specification | Qty |
| HA7000 | 3U, 19” rack, with 8 slots, 2 box type power, 2 fan | 1 |
| M7000 | NMS card | 1 |
| HA7102CS | EPON OLT, with 2 SFP PON ports and 2 1000M RJ45 uplink ports,1 Console port, 1 RJ45 management port | 1-8 |
| HA7104 | EPON OLT, with 4 SFP PON ports and 4 1000M uplink ports,1 Console port | 1-8 |
