Product Details:
|
Name: | Dome Fiber Optic Splice Closure | Cable Flexing: | Ten 90ºbends |
---|---|---|---|
Operating Temperature: | -20 To +80 | Storage Temperature: | -40 To +90 |
Axial Tension: | 100lbs For 30minutes | Cable Torsion: | Ten 90º Rotations |
High Light: | 100lbs fiber optic dome closure,144 Core fiber optic dome closure,144 Core dome fiber optic splice closure |

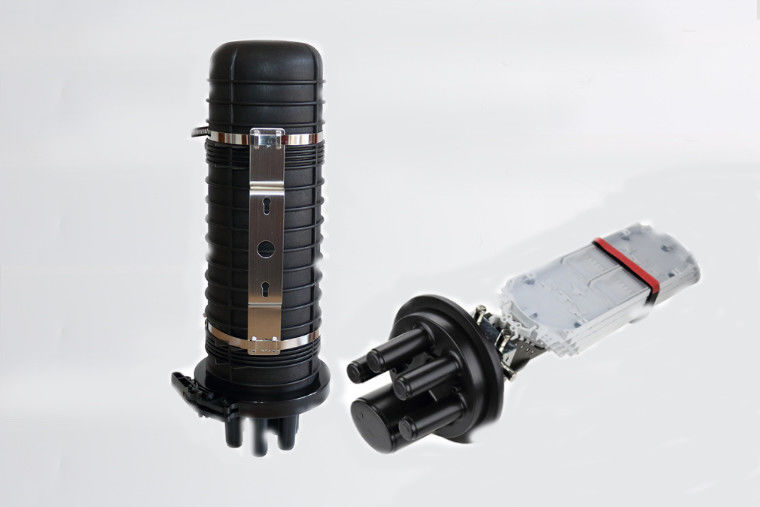

Dome Fiber Optic Splice Closure 144 Core Apply Aerial Wall-Mounting Epon Olt
Description
Dome Fiber Optic Splice Closure is used in aerial, wall-mounting applications, for the straight-through and branching splice of the fiber cable. The device allows for direct jointing and underground jointing. It also protects fiber optic splices from the elements while providing fast and easy no-cost re-entry.
Feature
1). Can be used in straight-through and branch application for cables of bunchy fiber and ribbon fiber.
2). Engineering plastic body filled with silicon rubber and sealed with hoop, the entry ports are sealed with mechanical screw thread.
3). Suitable for aerial duct wall -mounted or buried applications.
Specification
Size: 550mm*210*155mm
No. of Cable Inlet/Outlet: one inlet and four outlets
Number of Fibers per Tray: 24 or 36 core
Max. Number of Trays: 4
Max. Number of Fibers: 144 core( 4X 36 core)
Operating Temperature | -20 to +80 |
Storage Temperature | -40 to +90 |
Mechanical Compression | Resist deformation up to 400lbs |
Mechanical Impact | Withstand impact energy up to 40ft/lbs@0ºF |
Axial Tension | 100lbs for 30minutes |
Cable Torsion | Ten 90º rotations |
Cable Flexing | Ten 90ºbends |
Hydrostatic Pressure Head | Up to 20 ft/lb(~9 psi) |
