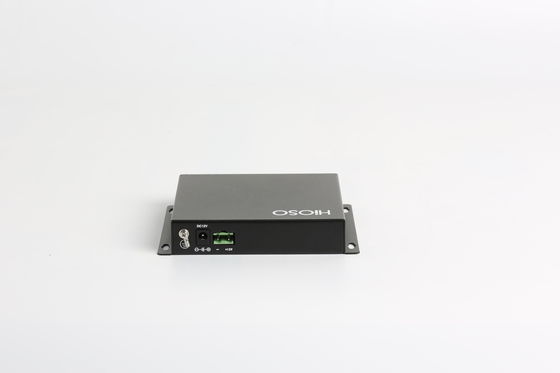

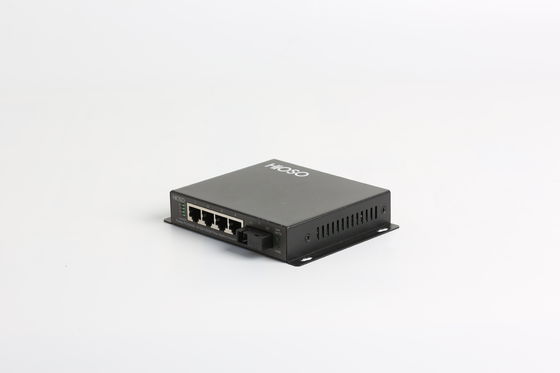

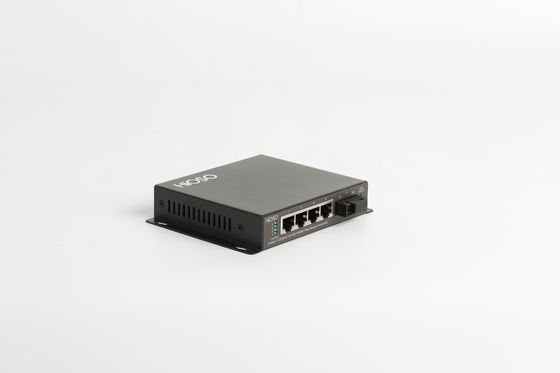

DC5V Ethernet Media Converter

DC5V Ethernet Media Converter
DC5V Ethernet Media Converter DC5V Ethernet Media Converter DC5V Ethernet Media Converter DC5V Ethernet Media Converter

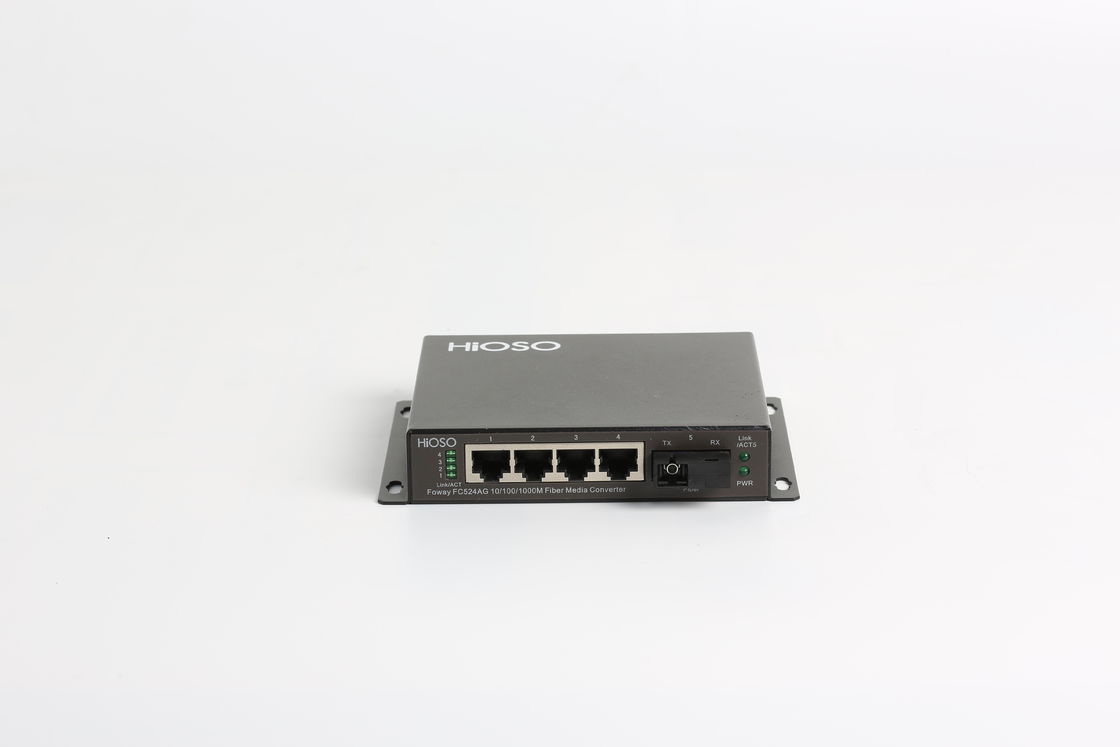

Large Image :  DC5V Ethernet Media Converter

Product Details:
Place of Origin: China, Guang dong
Brand Name: Hioso
Certification: CE, RoHS, CCC
Model Number: FC524AG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 54X32X18 cm
Delivery Time: 3-7 working days
Payment Terms: T/T
Supply Ability: 6000pcs/month

DC5V Ethernet Media Converter

Description
Product Name: Fiber Media Converter Access Mode: 10/100/1000Mbps
Delay: 9.6us Power: DC5V
Buffer Space: 1Mbit Mac Address: 1K
High Light:

DC5V ethernet media converter

,

CCC approval ethernet media converter

,

CCC approval 'fiber optic converter

4 Ports Gigabit HD Fiber Media Converter 4 Rj45 Ports + 1 Fiber Port



Overview


FC524AG is 1000M four ports HD Fiber Media Converter, which is specially designed for Network HD IP camera and Network access control system. It supports long-distance stable HD Network video signals transmission through fiber cables. FC524AG can work with FTC-17 Media Converter rack in the central machine room.

FC524AG provides HD Network port, which can connect with HD IP camera or Network access control system.



Feature

  • Adopt special switch chipset design for HD Network video transmission;
  • Support 3.2G bandwidth high-speed storing, forwarding and access;
  • Support 1000Base-FX fiber transmission standard, compatible with other devices which supports 1000Base-FX standard;
  • Support full-duplex and half duplex transmission modes and capable of automatic negotiation;
  • Support VLAN tag long packets transmission;
  • Support flow control, QOS and STP
  • Support max distance 120KM transmission;
  • FTC-17 Rack supports dual power supply redundancy backup and hot swap;
  • Support 1M built-in high-speed cache capacity and 2K built-in MAC address buffer space
  • Support lightning protection for electrical ports, low consumption and low heat, support long-term stable work.



Technical Specification

Parameter Specifications
Access mode 10/100/1000Mbps
Standard IEEE802.3 10Base-T Ethernet,IEEE802.3u,1000Base-TX/FX Fast Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS
Wavelength 850nm/1310nm/1550nm
Transmission distance Dual-fiber multi-mode: 2Km; single-mode: 25/40/60/80/100/120Km;
Single-fiber single-mode: 25/40/60/80/100Km Category-5 twisted pair: 100m
Port 4 RJ45 ports, connected to STP/UTP category-5 twisted pair
1 fiber port: Multi-mode - SC (fiber size: 50,62.5/125μm)
Single mode - SC fiber port (fiber size: 9/125μm)
Conversion mode Medium conversion, storing and forwarding mode
MAC address table I K
Buffer space 1Mbit
Flow control Full duplex state: flow control; half duplex state: back pressure mode
Delay 9.6us
MTBF 100,000 hours
LED PWR (power), FX LINK/ACT (fiber connection/action)
TP1--4 LINK/ACT (twisted pairs connection/action)
Power DC5V
Power consumption 2W
Temperature Operating temperature:-10~55℃ Storage temperature:-40~70℃
Operating humidity 5%~90%
Storage humidity 5%~90% (non-condensing)
Dimensions 26mm(Height)*140mm(Width)*106mm(Depth) (external power)





Order Information

Model

Rate

(Mbps)

Mode wavelength
(nm)
Distance
(Km))
Power
FC524AG-M-SC 1000 Dual-fiber multi-mode 1310 2 External power DC12V
FC524AG-S20/40-SCC 1000 Dual-fiber single-mode 1310 20/40 External power DC12V

FC524AG-

S60/80/100/120-SCC

1000 Dual-fiber single-mode 1550 60/80/100/120 External power DC12V
FC524AG-SS20/40-SCC 1000 Single-fiber single-mode 1310 20/40 External power DC12V
