Product Details:
|
| Name: | 8 Ports Din Rali Switch | Transmission: | 10 / 100M |
|---|---|---|---|
| Power1: | DC 10 ~ 60 V | Power2: | AC 18 ~ 30 V |
| Work: | -40 ~ 75°C | Storage: | -40~85°C |
| Highlight: | 100M Fx Port Din Rail Ethernet Switch,Rj45 Ports Din Rail Ethernet Switch,Rj45 Ports din rail switch mount |
||

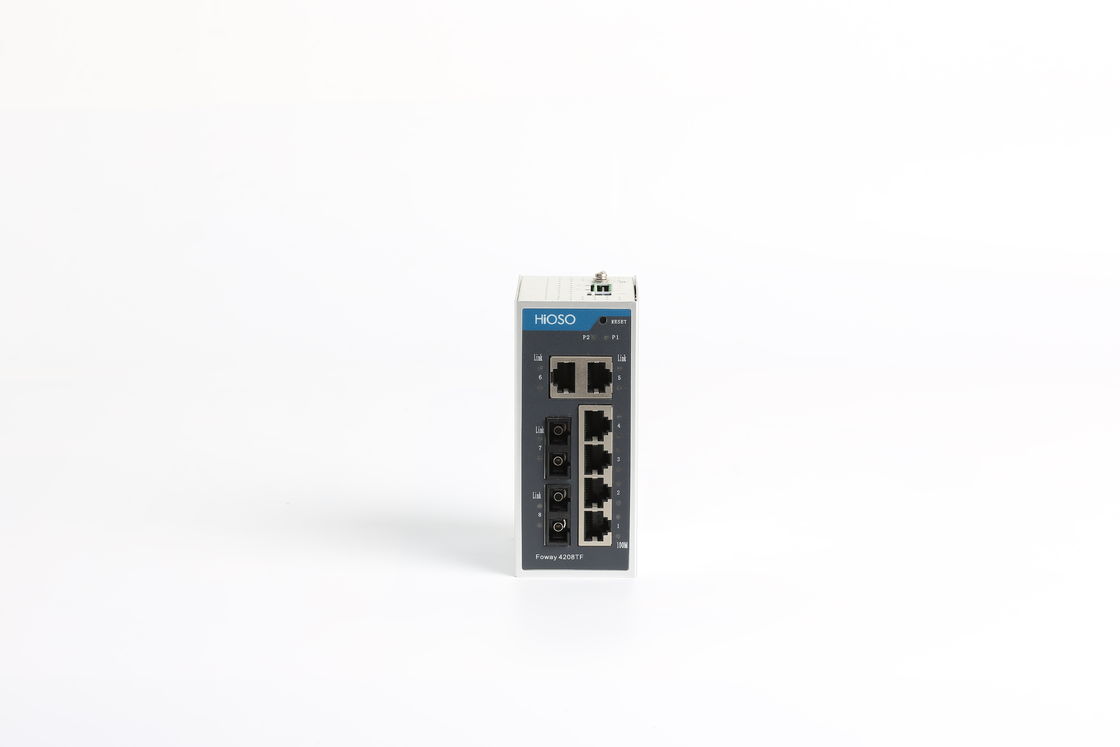

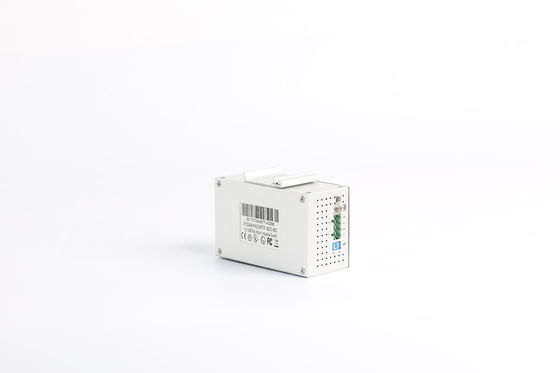

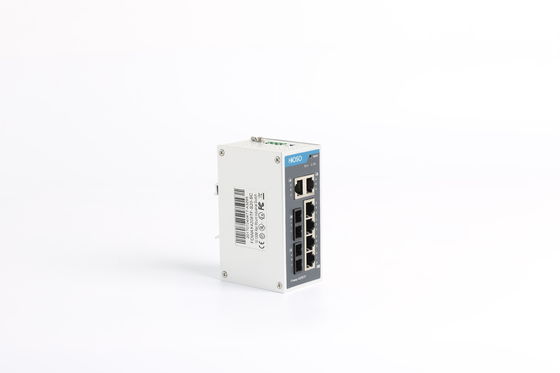

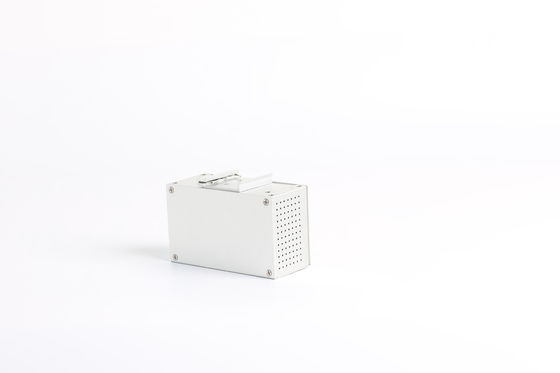

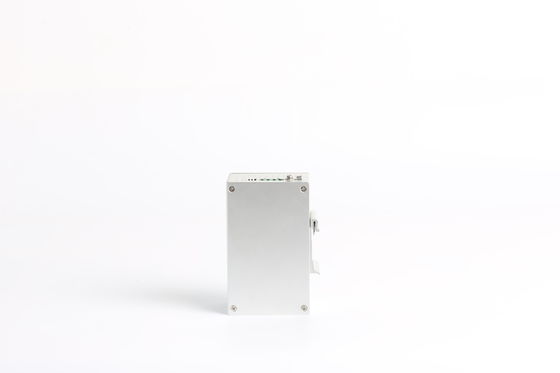

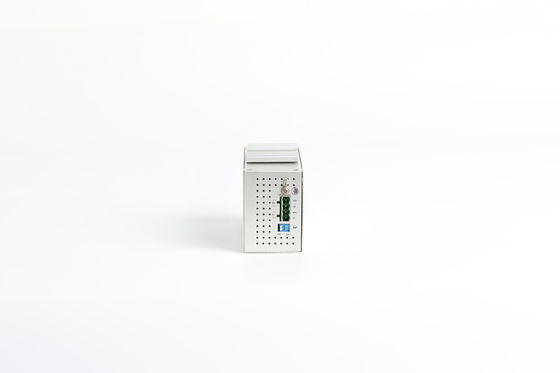

8 Ports Din Rail Ethernet Switch 6 Rj45 Ports + 2 100M Fx Port
Overview
Foway 4208TF series 8 ports Din Rail Type Industrial Ethernet switch, supply 6 10/100M RJ45 ports and 2 100M fiber uplink; provide 2 RPS (Redundant power supply) input : 10 ~ 60 VDC and 18 ~ 30VAC,support to connect DC power and AC power at the same time.
Technical Specification
| Access mode | 10/100Mbps |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.1d Spanning Tree Protocol ,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p Qos,,IEEE802.3ad Trunk, IEEE 802.3x Flow Control |
| Wavelength | 850nm/1310nm/1490nm/1550nm |
| Transmission distance | Dual-fiber multi-mode: 2Km; single-mode: 25/40/60/80/100/120Km;single-fiber single-mode: 25/40/60/80/100Km Category-5 twisted pairs: 100m |
| Port |
6 RJ45 ports: 10/100M 2 100M FX ports: Multi-mode – SC or ST (fiber size: 50,62.5/125μm) |
| Conversion mode | Medium conversion, storing and forwarding/straight-through |
| MAC address table | I K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half-duplex state: back pressure mode |
| Delay | 9.6us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | FX 100M (fiber rate 100M), TP1/2/3/4/5/6 100M (twisted pair rate 100M) , TP1/2/3/4/5/6 Link (twisted pair link/action);P1 (power supply P1 connected) ,P2(power supply P2 connected), RESET |
| Power | 12/24/48 VDC,18 ~ 30VAC input |
| Power consumption | 4W |
| Operating temperature | Normal:-10~60°C ;-T(wide range temperature: -40~75°C |
