Product Details:
Place of Origin: China, Guang dong
Brand Name: Hioso
Certification: CE, RoHS, CCC
Model Number: Foway2518PFSP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 54X32X18 cm
Delivery Time: 3-10 working days
Payment Terms: T/T, MoneyGram
Supply Ability: 2000pcs/month

AC220V POE Switch

Name: 18 Ports Poe Switch Management: WEB And SNMP
Power: AC110V/220V Error Rate: <1/1000000000
MAC: 8K Ports: 18 Ports
High Light:

850nm POE Switch


AC220V POE Switch


AC220V gigabit poe

18 Ports Poe Switch 16 10/100/1000M PoE Ports + 2 1000M SFP Ports

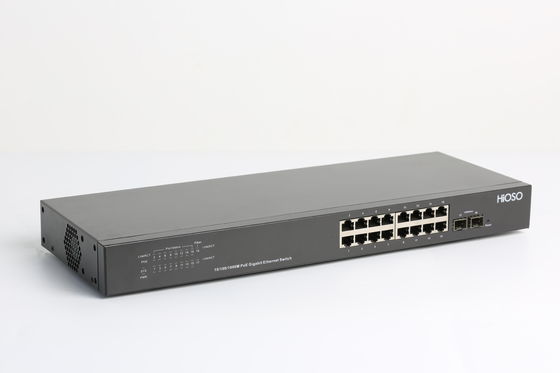

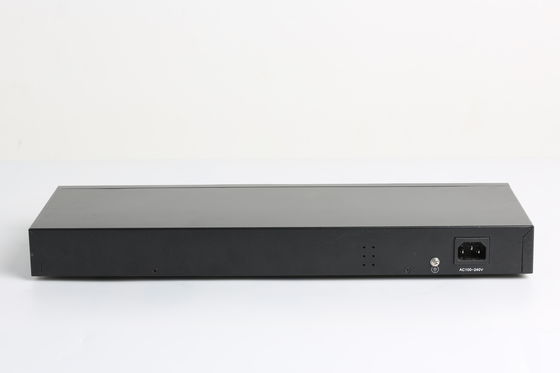

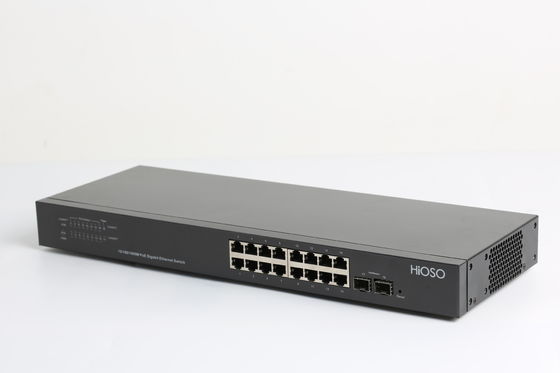

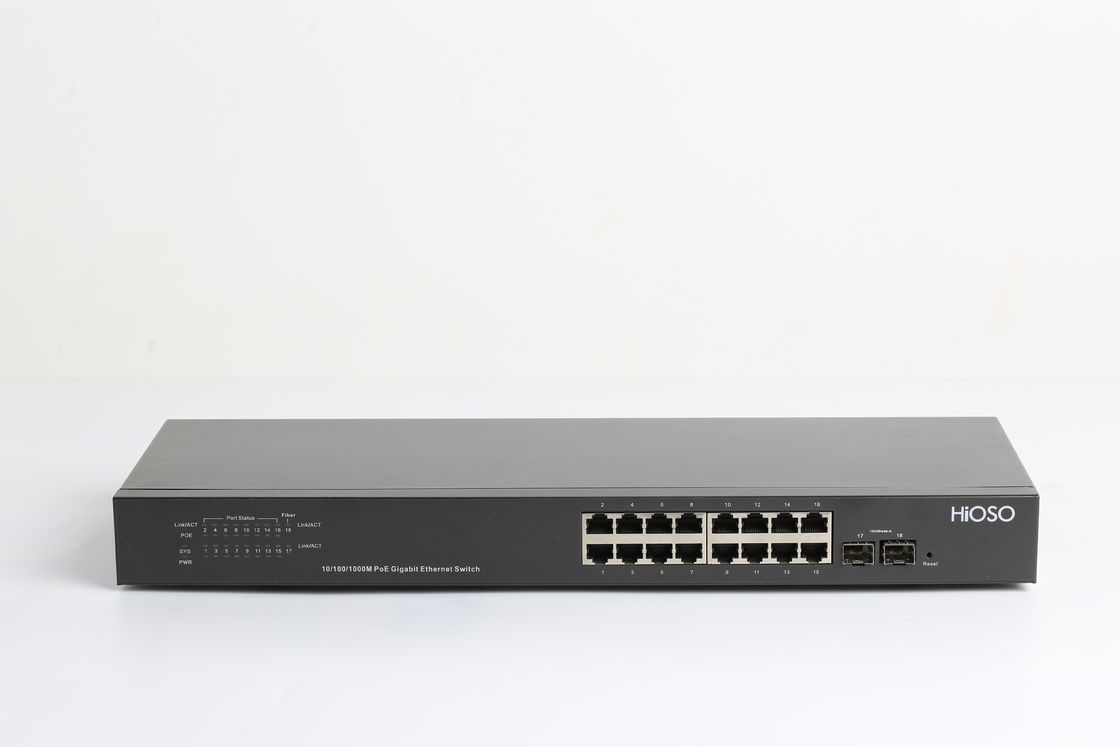

HiOSO Foway2518PFSP series 18 ports 1000M Security Industrial PoE Ethernet Switches, supply 16 10/100/1000M RJ45 PoE ports and 2 1000M SFP uplink ports; support auto discovery IEEE802.3af/at standard powered devices,auto stop powering the non standard poe devices;support to supply power to IP cameras,VoIP phones,wireless access points and other network devices;support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.



  • Support 16 10/100/1000M RJ45 PoE ports and 2 1000M SFP Uplink ports
  • Each PoE port supports auto detect the powered device
  • Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
  • Support each port full rate, full-duplex non-blocking forwarding
  • Support WEB management and SNMP (optional)
  • 8K MAC learning, 4Mbit storage and forward cache space,56G back plane bandwidth
  • 1U rack design, with inside fan, better for heat dissipating and installation


Parameter Specification
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree,IEEE802.1w RSTP,IEEE802.3ad Trunk,DHCP (optional), IEEE802.3af,IEEE802.3at
PoE 16 1000M PoE/PSE ports, support IEEE802.3af 15.4W / IEEE802.3at 30W
Wavelength 850nm/1310nm/1490nm/1550nm/
Transmission distance 1000M Fiber, multi-mode:220m(fiber size 62.5/125μm) /550m(fiber size 50/125μm); Single-mode:10/20/40/60/80/100/120Km; Single-fiber:10/20/40/60/80/100/120Km CAT5: 100M
Ports 16 1000M RJ45 ports (POE/PSE);2 1000M SFP ports (support copper SFP)
Buffer memory space 4Mbit
Bit error rate <1/1000000000
Power AC110V/220V@50HZ/60HZ
Power consumption Whole device:10W POE/PSE: maximum247W
Working temperature Common:-10~60℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Installation 1U rack
Dimension 44mm (H)×440mm(W)×160mm (D)
