CCC Approval IEEE802.3af/At PoE Powered Switch PoE 10 Port

CCC Approval IEEE802.3af/At PoE Powered Switch PoE 10 Port
CCC Approval IEEE802.3af/At PoE Powered Switch PoE 10 Port CCC Approval IEEE802.3af/At PoE Powered Switch PoE 10 Port CCC Approval IEEE802.3af/At PoE Powered Switch PoE 10 Port CCC Approval IEEE802.3af/At PoE Powered Switch PoE 10 Port

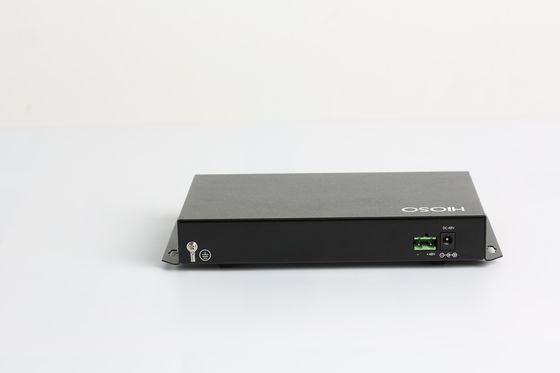

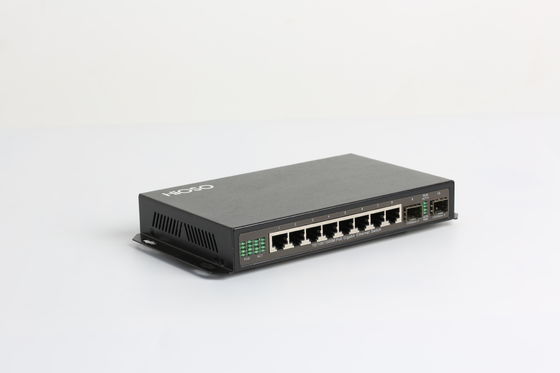

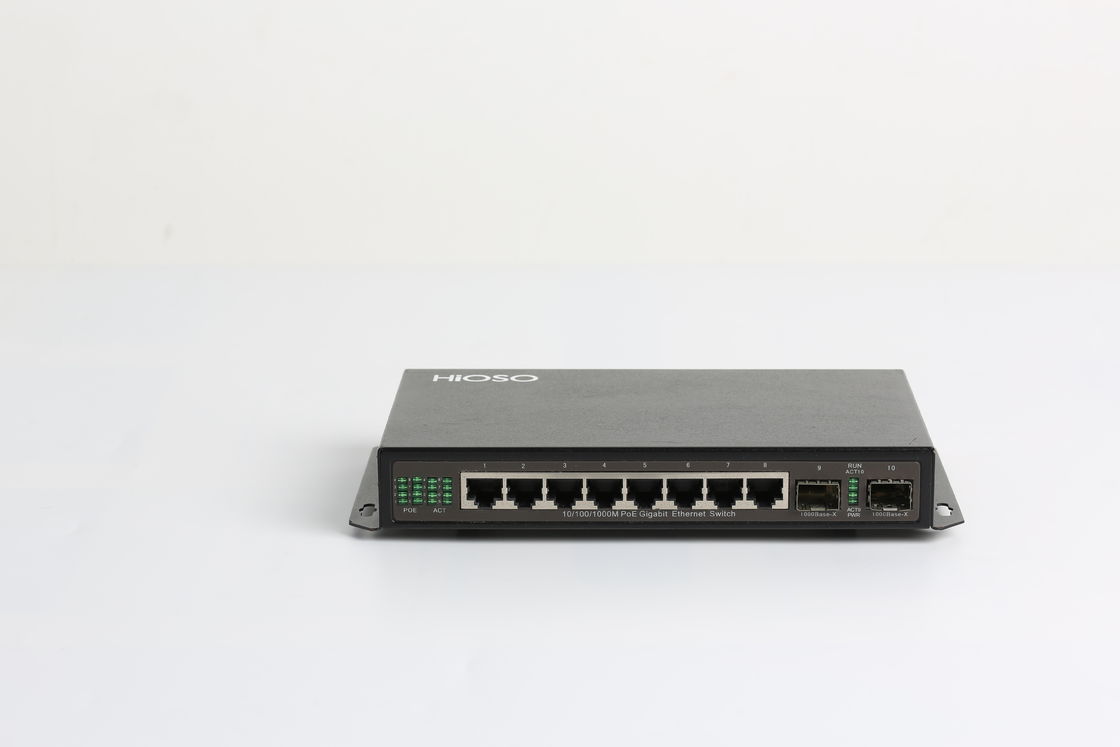

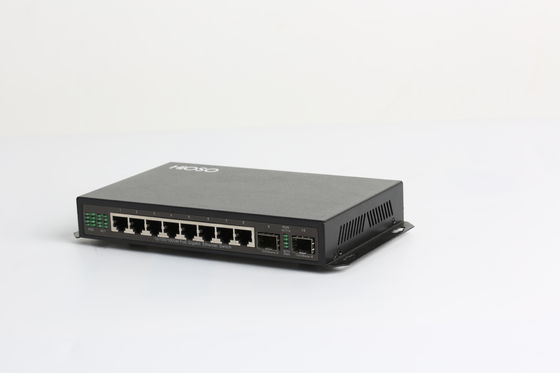

Large Image :  CCC Approval IEEE802.3af/At PoE Powered Switch PoE 10 Port

Product Details:
Place of Origin: China
Brand Name: HiOSO
Certification: CCC
Model Number: Foway2510PFS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 38X24X18 CM
Delivery Time: 3-12 work days
Payment Terms: L/C, T/T
Supply Ability: 4000 pcs/month

CCC Approval IEEE802.3af/At PoE Powered Switch PoE 10 Port

Description
Name: POE Switch Standard: IEEE802.3af/at
Support: 16K MAC Learning Cache Space: 2 Mbit Storage
Working: -10~60℃ Storage: -40~80℃
High Light:

CCC approval poe powered switch

,

IEEE802.3af/at poe powered switch

,

IEEE802.3af/at switch poe 10 port

10 Ports Poe Switch 8 10 / 100 / 1000M PoE + 2 1000M SFP Uplink Ports



Character

  • Support 8 10/100/1000M RJ45 PoE ports and 2 1000M SFP ports ring network/cascaded Uplink,SFP port supports hot swap (support copper SFP)
  • Each PoE port supports auto detect the powered device
  • Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
  • Support each port full rate, full-duplex non-blocking forwarding
  • Support WEB management and SNMP (optional)
  • Support 16K MAC learning, 2Mbit storage and forward cache space,support maximum 10K Bytes jumbo frame forward, 22G back plane bandwidth
  • Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability
  • Supply redundant dual power input ports, enhance reliability
  • Metal casing with Wall mounting design , better for heat dissipating and installation

Technical Specification

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3x Flow control, IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.1w RSTP, IEEE802.3ad Trunk, DHCP, IEEE802.3af, IEEE802.3at
PoE

8 PoE/PSE ports, support IEEE802.3af 15.4W / IEEE802.3at 30W

Working mode:auto detect powered device,stop powering if not PD device

Wavelength 850nm/1310nm/1490nm/1550nm/
Transmission distance 1000M Fiber,multi-mode:220m(fiber size 62.5/125μm)/550m(fiber size 50/125μm); Single-mode:10/20/40/60/80/100/120Km;Single-fiber:10/20/40/60/80/100/120Km CAT5: 100M
Ports

8 1000M RJ45 ports (POE/PSE): 10/100/1000Mbps

2 1000M SFP ports: 1 Gbps, 1000M SFP / 1000M Copper SFP

MAC 16K
Buffer memory space 2Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power

DC48V dual input redundant backup (external power)

AC110V/220V@50HZ/60HZ&DC48V dual input redundant backup (inside power)

Power consumption Whole device:7.5W POE/PSE: maximum240W
Working temperature Common:-10~60℃; -T (wide temperature range):-40~75℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Installation Wall mounting type (external power), desk type/1U rack (inside power)
Dimension

30mm (H)×219mm(W)×119mm (D) (external power)

44mm (H)×276mm(W)×190mm (D) (inside power)





Order information



No Type NMS Ports PoE Output Power / Power supply
1 Foway2510PFS-8AF NO 8 1000M PoE+2 1000M SFP IEEE802.3af 15.4W, total 125w;external DC48V
2 Foway2510PFS NO 8 1000M PoE+2 1000M SFP IEEE802.3af/at 15.4W/30W, total 125w;DC48V
3 Foway2510PFS-240W NO 8 1000M PoE+2 1000M SFP IEEE802.3af/at 15.4W/30W, total 240w;DC48V
4 Foway2510PFSP-8AF NO 8 1000M PoE+2 1000M SFP IEEE802.3af 15.4W, total 125w;inside AC220V
