Product Details:
Place of Origin: China
Brand Name: HiOSO
Certification: CCC
Model Number: HA7316G
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: 53x48x25 CM
Delivery Time: 3-9 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500pcs / month

Real Time Upgrade DBA Algorithm 1U Rack GPON OLT Fiber Black

Description
High Light:

DBA algorithm GPON OLT

,

1U rack GPON OLT

,

1U rack olt fiber

16 Port Gpon Olt Each PON Port Support Maximum Splitting Ratio 1:128



Feature

  • Support ITU-TG 984x standard
  • 1U rack design, inside fan,better for heat dissipating and reliability operating
  • Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access



Technical Specification



Parameter Specification
Switching Capacity 140Gbps
Forwarding Capacity(Ipv4/Ipv6) 104MPPS
Service Port

16*PON port

4*GE COMBO port, 2*10GE SFP+ port

Redundancy Design

Single power supply or dual power supply

Support AC input, or DC input

Power Supply

AC: input 90~264V 47/63Hz;

DC: input -36V~-72V;

Power Consumption ≤110W
Dimensions 440mm×44mm×380mm
Weight (Full-Loaded) ≤3kg
Environmental Requirements

Working temperature: -10°C~55°C

Storage temperature: -40°C~70°C

Relative humidity: 10%~90%, non-condensing



Parameter Specification

PON Features





ITU-TG.984.x standard

Maximum 20 Km PON transmission distance

access 128 terminals for single fiber PON

DBA algorithm, the particle is 1Kbit/s

Standard OMCI management function

ONU batch software upgrade, fixed time upgrade, real time upgrade

PON port optical power detection

L2 Features MAC MAC Black Hole; Port MAC Limit; 64K MAC (packet exchange chip cache 2MB, external cache 720 MB )
VLAN

4K VLAN entries; Port-based/MAC-based/protocol/IP subnet-based ; QinQ and flexible QinQ (StackedVLAN)

isolation and saving public-vlan resources; GVRP

STP STP/RSTP/MSTP; Remote loop detecting
Port

Bi-directional bandwidth control

Static link aggregation and LACP(Link Aggregation Control Protocol); Port mirroring

Security

Features

User's Security

Anti-ARP-spoofing ; Port Isolation

IP Source Guard create IP+VLAN+MAC+Port binding

MAC address binding to the port and MAC address filtering

IEEE 802.1x and AAA/Radius authentication

Device Security

Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP

Hierarchical management and password protection of users

Network Security

User-based MAC and ARP traffic examination

Restrict ARP traffic of each user and force-out user with abnormal ARP traffic; Dynamic ARP table-based binding

IP+VLAN+MAC+Port binding

L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet

DHCP Option82 and PPPoE+ upload user's physical location Plaintext authentication of OSPF, RIPv2 and BGPv4 packets and MD5; cryptograph authentication

Service Features



ACL

Standard and extended ACL

Time Range ACL

Flow classification and flow definition based on source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/destination IP(IPv4/IPv6) address, TCP/UDP port number, protocol type, etc

packet filtration of L2~L7 deep to 80 bytes of IP packet head

QoS

Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow

Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark

eues and scheduler of SP, WRR and

SP+WRR.

Congestion avoid mechanism, including Tail-Drop and WRED

IPv4

ARP Proxy, DHCP Relay, DHCP Server

Static Routing, RIPv1/v2, OSPFv2, BGPv4

Equivalent Routing, Routing Strategy

IPv6

ICMPv6, ICMPv6 Redirection, DHCPv6,ACLv6, OSPFv3, RIPng

BGP4+, Configured Tunnels, ISATAP, 6to4 Tunnels

Dual stack of IPv6 and IPv4

Multicast

 oem

IGMP Fast leave, IGMP Proxy, PIM-SM/PIM-DM/PIM-SSM

PIM-SMv6, PIM-DMv6, PIM-SSMv6, MLDv2/MLDv2 Snooping

Reliability Loop Protection EAPS and GERP (recover-time <50ms), Loop back detection
Link Protection

FlexLink (recover-time <50ms), RSTP/MSTP (recover-time <1s)

LACP (recover-time <10ms), BFD

Device Protection VRRP host backup , 1+1 power hot backup
Maintenance Network Maintenance

Port real-time, utilization and transmit/receive statistic based on Telnet; RFC3176 sFlow analysis; LLDP, GPON OMCI

RFC 3164 BSD syslog Protocol; Ping and Traceroute

Device Management

CLI, Console port, Telnet and WEB

SNMPv1/v2/v3

NGBNView network management

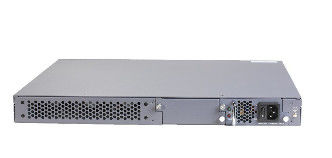

 Real Time Upgrade DBA Algorithm 1U Rack GPON OLT Fiber Black 0

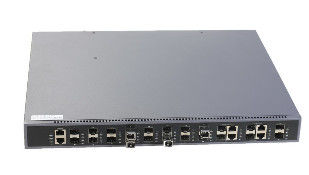

Real Time Upgrade DBA Algorithm 1U Rack GPON OLT Fiber Black 1
