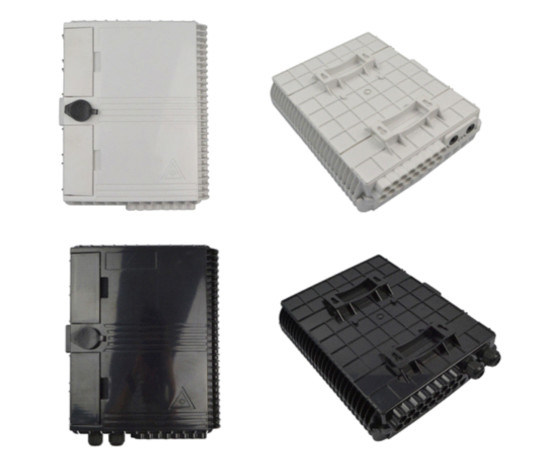

Plastic 320*260*85mm FTTH Outdoor Fiber Optic Termination Box

Certification
China HiOSO Technology Co., Ltd. certification
China HiOSO Technology Co., Ltd. certification
I'm Online Chat Now

Plastic 320*260*85mm FTTH Outdoor Fiber Optic Termination Box

Plastic 320*260*85mm FTTH Outdoor Fiber Optic Termination Box
Plastic 320*260*85mm FTTH Outdoor Fiber Optic Termination Box

Large Image :  Plastic 320*260*85mm FTTH Outdoor Fiber Optic Termination Box

Product Details:
Place of Origin: China
Brand Name: HiOSO
Certification: CCC
Model Number: CTO-16
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 38X24X18 CM
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs/month

Plastic 320*260*85mm FTTH Outdoor Fiber Optic Termination Box

Description
Name: CTO-16 Weight: 1.3KG
Temperatures: -40℃ -- 80℃ Humidity: 93% At 40℃
Air Pressure: 62kPa – 101kPa Dimensions: 320*260*85mm (W X H X D)
High Light:

320*260*85mm outdoor fiber optic termination box

,

FTTH outdoor fiber optic termination box

,

FTTH fiber optic splice box outdoor

FTTH Plastic Outdoor Cable Termination Box CTO 16 Core Epon Olt



Description

CTO-16 core fiber optic terminal box terminates up to 2 fiber optic cables, offers space for splitters and up to 16 fusions, allocates 16 pcs of SC adapters and working under both indoor and outdoor environments. 16core fiber optic terminal box is a perfect cost-effective solution-provider in the FTTx networks.



Application:

  • Widely used in FTTH access network.
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks



Feature:

  • ABS/PC material used ensures the body strong and light
  • Water-proof design for outdoor application
  • Easy installations: Ready for wall mount – installation kits provided
  • Adapter slots used – No screws and tools needed for installing adapters
  • Ready for splitters: designed space for adding splitters
  • Space saving: Double-layer design for easier installation and maintenances
  • Lower layer for splitters and over length fiber storage
  • Upper layer for splicing, cross-connecting and fiber distribution
  • Cable fixing units provided for fixing the outdoor optical cable
  • Protection Level: IP65
  • Lock provided for extra security
  • Accommodates both cable glands as well as mid span access



Specification:

Temperatures -40℃ -- 80℃
Humidity 93% at 40℃
Air Pressure 62kPa – 101kPa


FTTH distribution box Package includes:
Terminal box, 1 unit
Keys for lock, 2 keys
Wall mount installation accessories, 1 set

Dimensions and Capability:

Dimensions: 320*260*85mm (W x H x D)
Weight: 1.3KG
Accommodates 1X16 splitters and up to 16 SC simplex adapters
Max allowance for entry cables: max diameter 16mm, up to 2 cables
Max allowance for exit cables: up to 16 simplex cables
