8 Gigabit Ethernet Ports 4 10G Uplink Ports L3 8 Port EPON OLT

8 Gigabit Ethernet Ports 4 10G Uplink Ports L3 8 Port EPON OLT

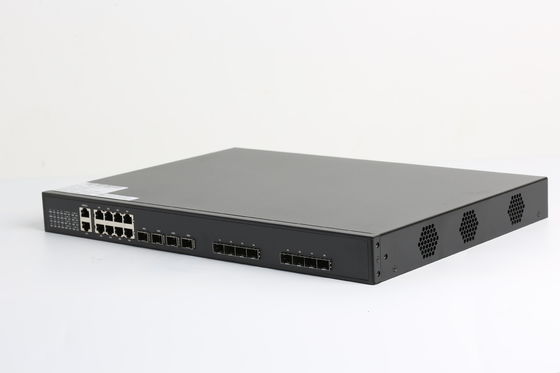

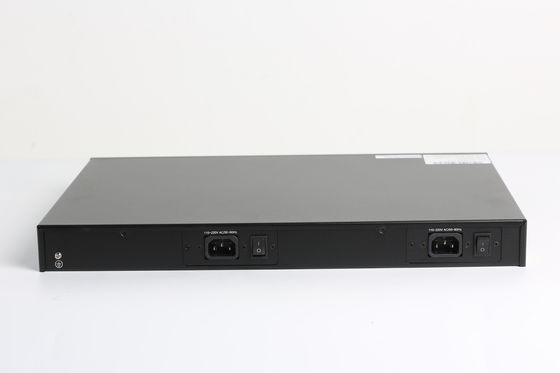

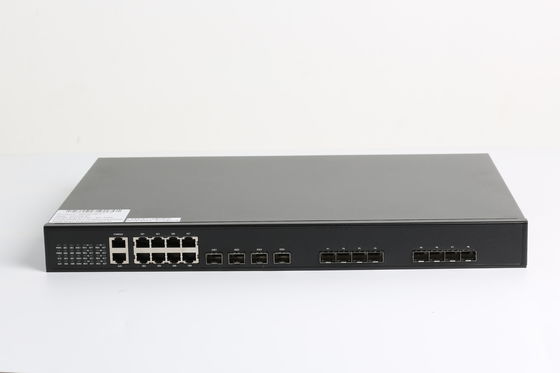

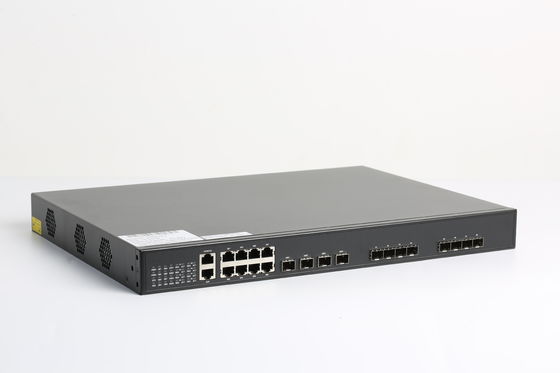

8 Gigabit Ethernet Ports 4 10G Uplink Ports L3 8 Port EPON OLT 8 Gigabit Ethernet Ports 4 10G Uplink Ports L3 8 Port EPON OLT 8 Gigabit Ethernet Ports 4 10G Uplink Ports L3 8 Port EPON OLT 8 Gigabit Ethernet Ports 4 10G Uplink Ports L3 8 Port EPON OLT

Large Image :  8 Gigabit Ethernet Ports 4 10G Uplink Ports L3 8 Port EPON OLT

Product Details:
Place of Origin: China
Brand Name: HiOSO
Certification: CCC
Model Number: HA7308E-BP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 54X32X18 cm
Delivery Time: 3-11 working days
Payment Terms: T/T
Supply Ability: 2000pcs/month

8 Gigabit Ethernet Ports 4 10G Uplink Ports L3 8 Port EPON OLT

Description
Product Name: 8 Ports EPON OLT Power Supply: AC110~220V
Pon Port: 8 Application: FTTH FTTB FTTX Network
Distance: 20km Material: Metal
High Light:

8 Port EPON OLT

,

8 Gigabit Ethernet Ports EPON OLT

,

8 Port olt optical line terminal

8 Ports Epon Olt 8 Gigabit Ethernet Ports + 4 10G Uplink Ports L3



Features

  • Supply 8 SFP PON ports, 8 10/100/1000M TP uplink ports, 4 10G SFP+ uplink ports
  • Apply to IEEE 802.3ah EPON and China Telecom/Unicom EPON standard
  • Support L2 and L3 protocol
  • Support SNMPv1/v2/v3
  • Support IPV4,IPV6
  • Support IGMP v1/v2/v3
  • Support to work with different chipset solution EPON ONUs
  • Built-in double power supply (optional), including AC or DC power

Technical specification

Parameter Specification
Switching Capacity 128Gbps
Forwarding Capacity(Ipv4/Ipv6) 95.23Mpps
Service Port 4*PON port, 4*10GE/GE SFP+8GE
Redundancy Design Built-in double power supply, including AC, double DC, AC+DC, single AC, single DC
Power Supply AC: input100~240V 47/63Hz; DC: input36V~75V
Power Consumption ≤45W
Dimensions 440mm×44mm×311mm (Width x Depth x Height)
Weight (Full-Loaded) ≤3kg



Service Features

Parameter Specification

PON Features



IEEE 802.3ah EPON

China Telecom/Unicom EPON

Maximum 20 Km PON transmission distance

Each PON port supports the max. 1:64 splitting ratio

Uplink and downlink triple churning encrypted function with 128Bits

Standard OAM and extended OAM

ONU batch software upgrade, fixed time upgrade, real time upgrade

PON transmit and inspect receiving optical power

PON port optical power detection

L2 Features MAC Black Hole; Port MAC Limit; 16K MAC address

4K VLAN entries

Port-based/MAC-based/protocol/IP subnet-based

QinQ and flexible QinQ (StackedVLAN)

VLAN Swap and VLAN Remark

PVLAN to realize port isolation and saving public-vlan resources

GVRP

STP/RSTP/MSTP; Remote loop detecting

Bi-directional bandwidth control

Static link aggregation and LACP(Link Aggregation Control Protocol)

Port mirroring

Security

Features

User’s Security

Anti-ARP-spoofing ; Anti-ARP-flooding

IP Source Guard create IP+VLAN+MAC+Port binding

Port Isolation

MAC address binding to the port and MAC address filtering

IEEE 802.1x and AAA/Radius authentication

Device Security

Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP

detection, worm and Msblaster worm attack

SSHv2 Secure Shell

SNMP v3 encrypted management

Security IP login through Telnet

Hierarchical management and password protection of users

IP Routing IPv4

ARP Proxy; DHCP Relay; DHCP Server

Static Routing; RIPv1/v2; OSPFv2; BGPv4

Equivalent Routing; Routing Strategy

  IPv6

ICMPv6; ICMPv6 Redirection; DHCPv6; ACLv6

OSPFv3; RIPng; BGP4+; Configured Tunnels

ISATAP; 6 to4 Tunnels; Dual stack of IPv6 and IPv4

Service Features



ACL

Standard and extended ACL

Time Range ACL

Flow classification and flow definition based on source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/destination IP(IPv4/IPv6) address, TCP/UDP port number, protocol type, etc

packet filtration of L2~L7 deep to 80 bytes of IP packet head

QoS

Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow

Priority remark to port or self-defined flow and provide 802.1P, DSCP

priority and Remark

CAR(Committed Access Rate), Traffic Shaping and flow statistics

Packet mirror and redirection of interface and self-defined flow

Super queue scheduler based on port or self-defined flow. Each port/

flow supports 8 priority queues and scheduler of SP, WRR and

SP+WRR.

Congestion avoid mechanism, including Tail-Drop and WRED

IGMPv1/v2/v3; IGMPv1/v2/v3 Snooping; IGMP Filter;IGMP Fast leave; IGMP Proxy;

MVR and cross VLAN multicast copy

PIM-SM/PIM-DM/PIM-SSM; PIM-SMv6, PIM-DMv6,

PIM-SSMv6; MLDv2/MLDv2 Snooping

Reliability

EAPS and GERP (recover-time <50ms)

Loop back-detection

FlexLink (recover-time <50ms);RSTP/MSTP (recover-time <1s)

LACP (recover-time <10ms);BFD

VRRP host backup ;1+1 power hot backup
Maintenance

Port real-time, utilization and transmit/receive statistic based on Telnet

LLDP; 802.3ah Ethernet OAM;

CLI, Console port, Telnet and WEB

SNMPv1/v2/v3; RMON (Remote Monitoring)1, 2, 3, 9 groups MIB; NTP
