Product Details:
|
| Item: | Fiber Switch | Distance: | RJ45 Port: 100m |
|---|---|---|---|
| Power Consumption: | 3.8W | Buffer Memory Space: | 1Mbit |
| Working Temperature: | -10~60℃ | Storage Temperature: | -40~80℃ |
| High Light: | 8 100M TP Ethernet Access Switch,1000M SFP Ports Ethernet Access Switch,8 100M TP optical network switch |
||

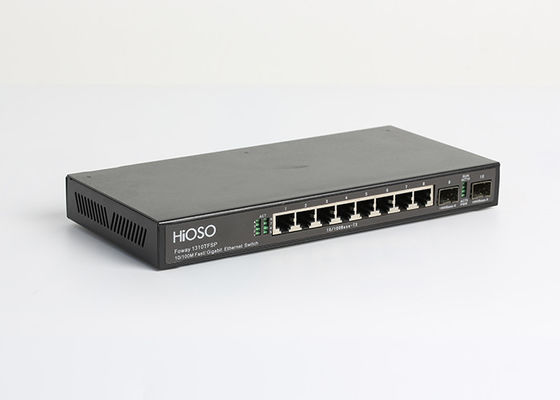

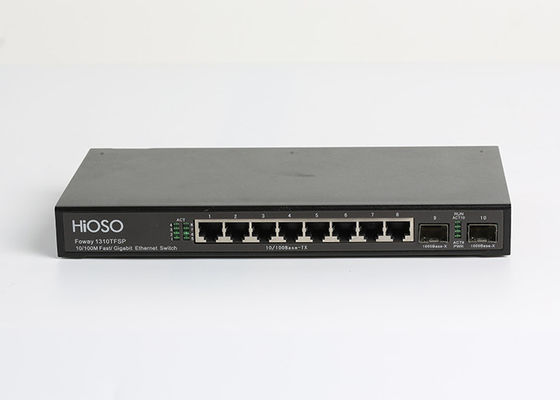

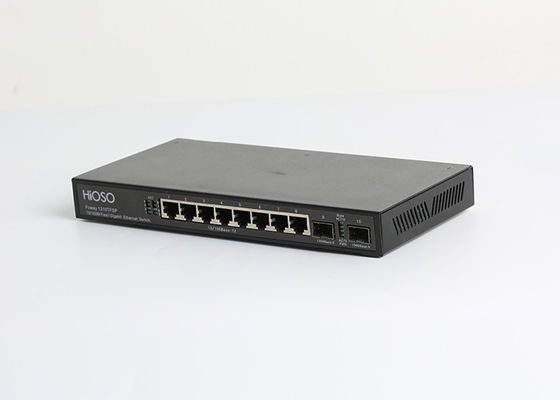

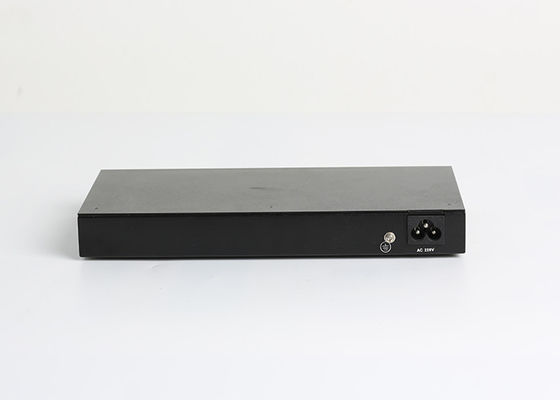

Ethernet Access Switch 8 100M TP + 2 1000M SFP Ports 10 Ports Switch
Overview
HiOSO FOWAY1310TFS is our ten port Ethernet switch with 8 10/100M RJ45 Ethernet ports and 2 1000M SFP fiber uplink port. It can be either Managed or non managed through web/SNMP (optional). FOWAY1310TFS is widely used in transmitting HD videos with strict requirements in security, power and traffic system.
Technical Specification
| Parameter | Specification |
| Distance |
RJ45 port: 100m SFP port: Multi-mode: 220m (fiber size 62.5/125μm) /550m(fiber size 50/125μm) Single-mode: 10/20/40/60/80/100/120Km |
| Port | 8 10/100M RJ45 ports ;2 1000M fiber uplink port: SFP uplink port |
| MAC address | 8K |
| Buffer memory space | 1Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power | DC12V/1A |
| Power consumption | 3.8W |
| Working temperature | -10~60℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Dimension |
28mm (H)×219mm(W)×119mm (D) (external power) 28mm (H)×239mm(W)×119mm (D) (inside power) |
Order information
| NO | Type | NMS | Ports | Power |
| 1 | Foway1310TFS | NO | 8 10/100M RJ45 +1 1000M SFP uplink | DC12V |
| 2 | Foway1310TFSM | WEB | 8 10/100M RJ45 +1 1000M SFP uplink | DC12V |
| 3 | Foway1310TFSP | NO | 8 10/100M RJ45 +1 1000M SFP uplink | AC110V/220V |
| 4 | Foway1310TFSPM | WEB | 8 10/100M RJ45 +1 1000M SFP uplink | AC110V/220V |
