SNMP Management 8K Mini 2 Pon EPON OLT Compatible With FTTX ONU

SNMP Management 8K Mini 2 Pon EPON OLT Compatible With FTTX ONU
SNMP Management 8K Mini 2 Pon EPON OLT Compatible With FTTX ONU SNMP Management 8K Mini 2 Pon EPON OLT Compatible With FTTX ONU SNMP Management 8K Mini 2 Pon EPON OLT Compatible With FTTX ONU SNMP Management 8K Mini 2 Pon EPON OLT Compatible With FTTX ONU

Large Image :  SNMP Management 8K Mini 2 Pon EPON OLT Compatible With FTTX ONU

Product Details:
Place of Origin: China
Brand Name: HiOSO
Certification: CCC
Model Number: HA7302CS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD250/PC without PON SFP
Packaging Details: 38 * 35 * 16 CM
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000pcs/month

SNMP Management 8K Mini 2 Pon EPON OLT Compatible With FTTX ONU

Description
Product Name: EPON OLT Distance: 20km
Color: Black Mac Address: 8K
Pon Port: 2 PON Ports Type: FTTx Solutions
High Light:

Mini 2 Pon EPON OLT

,

FTTX ONU EPON OLT

,

Mini 2 Pon olt epon v solution

Epon Olt Mini 2 Pon Ftth Olt Compatible With Fttx Onu Fiber Optic Equipment



Feature
  • Supply 2 SFP PON ports, 2 Combo uplink ports, 1 10/100M RJ45 management port
  • Support SNMP management and WEB management
  • Each PON port support 1.32 split ratio, total 64 ONUs access,maximum 128
  • Distance can reach 20km under 1:32 split ratio,maximum 1:64
  • Support to work with HA400/HA7200 series ONUs to establish passive network
  • 1U rack design, inside fan,better for heat dissipating and reliability operating
  • Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access

Technical Specification
Parameter
Specifications
Operating wavelength
1310(RX)/1490(TX)
Optical power
+0 ~ +7dBm
Receiving sensitivity
-27dBm
Max distance
20km
Max splitter ratio
1:32
Capacity
2 PON, standard: 64 ONUs maximum:128 ONUs
MAC
8K
Uplink port
2 10/100/1000 Ethernet RJ45 ports / 2 Gigabit SFP ports optional
PON port
2 SC fiber ports
Control port
RJ45 console port, to debug the device
MTBF
100,000 hours





EPON traits
Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)


Protocols supported
Support IEEE802.3, IEEE802.3u, IEEE802.3ab
Support IEEE802.1Q VLAN
Support IEEE 802.1P QoS


Management
CLI and GUI, SNMP, WEB
Support DHCP Snooping
Support Ipv4 address learning based at DHCP Snooping
Support ARP Snooping, QoS etc

Working Environment
Power supply
AC220V
Power consumption
11W
Operating temperature
-10~55℃
Storage temperature
-40~70℃
Humidity
5%~90% non-condensing
Dimension
276mm(length) ×200mm(width) ×44mm(height)

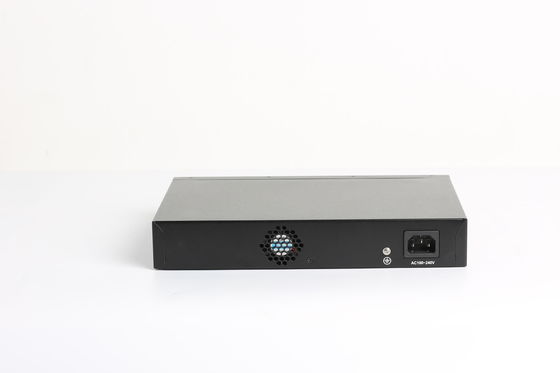

Details Image



SNMP Management 8K Mini 2 Pon EPON OLT Compatible With FTTX ONU 0

SNMP Management 8K Mini 2 Pon EPON OLT Compatible With FTTX ONU 1







Application







SNMP Management 8K Mini 2 Pon EPON OLT Compatible With FTTX ONU 2
