SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch

Certification
China HiOSO Technology Co., Ltd. certification
China HiOSO Technology Co., Ltd. certification
I'm Online Chat Now

SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch

SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch
SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch

Large Image :  SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch

Product Details:
Place of Origin: China
Brand Name: HiOSO
Certification: CCC
Model Number: FOWAY6200-28FS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: 44mm (H)*440mm(W)*210mm (D)
Delivery Time: 2-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000psc/month

SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch

Description
Type: FTTH Solution Ports: 24 1000M SFP + 4 10G SFP+ Uplink Port
MAC: 16K Transmisson Rate: 1000Mbps: 1000Mbps
Power: AC100-240v Dimension: 44mm (H)*440mm(W)*210mm (D)
High Light:

AC100V Fiber Optic Switch

,

1000Mbps Fiber Optic Switch

,

1000Mbps single mode fiber switch

Product Description
SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch 0
FOWAY6200-28FS 24 1000M SFP + 4 10G SFP+ Uplink Fiber Switch
Character ✔Support 24 100/1000M SFP (or SFP-1000BaseT RJ45 ) access and 4 10G SFP+ uplink port (1000M/10G) Support the default 100M,1000M SFP,the SFP-1000BaseT RJ45 and 10G SFP+ hot plug Support full rate, full-duplex non-blocking forwarding at each port Support WEB ,and SNMP management (optional):VLAN,STP/RSTP,Trunk port aggregation, IGMP,port Mirroring,port isolation,broadcast control,loop detection,QinQ, etc
Technical Specification
Parameter
Specification

Standard
IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit
Ethernet, IEEE802.1d Spanning Tree Protocol,IEE802.1w Rapid STP,IEE802.1s Multiples STP,IEE802.1q Vlan,IEE802.1q Qos,IEE802.3ad
Trunk,IEE802.3X Flow Control
Wavelength
SFP:850nm/1310nm/1490nm/1550nm



Distance
100M SFP Multi-mode: 2km (fiber size 62.5/125μm or 50/125μm)
Single-mode: 20/40/60/80/100/120Km
Single-fiber single-mode: 25/40/60/80/100/120Km
1000M SFP Multi-mode: 220m (fiber size 62.5/125μm)/550m(fiber size 50/125
μm)
Single-mode: 10/20/40/60/80/100/120Km
Single-fiber single-mode:10/20/40/60/80/100/120Km
CAT5: 100m

Port
24 Gigabit SFP fiber ports: 1000Mbps,1000M SFP / SFP-1000BaseT
4 10G SFP+ port:10 Gbps, 1G SFP/10G SFP+
1 console management port
1 100M RJ45 management port
MAC
16K
Buffer memory space
12Mbit
Bit error rate
<1/1000000000
MTBF
100000 hours
Power
AC 110-230V
Power consumption
33W
Working
temperature
-10~60℃
Storage temperature
-40~80℃
Humidity
5%~90% non-condensing
Dimension
44mm (H)×440mm(W)×210mm (D)
Details Images

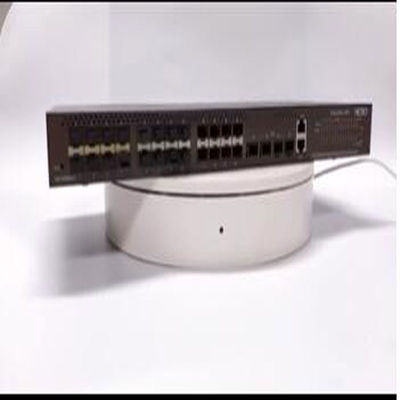

SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch 1

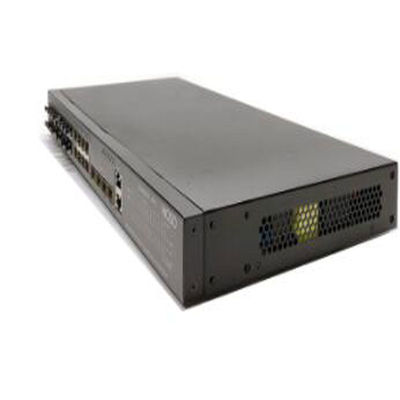

SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch 2

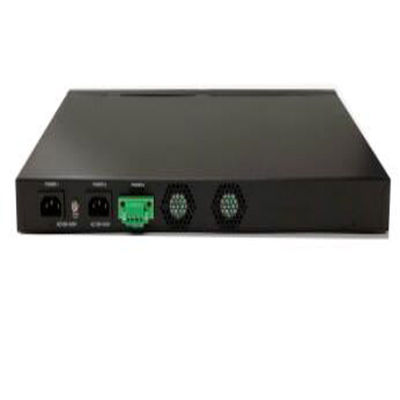

SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch 3
24 1000M SFP PORTS
4 10G SFP+ Uplink
POWER:AC100-240V
Product Usage

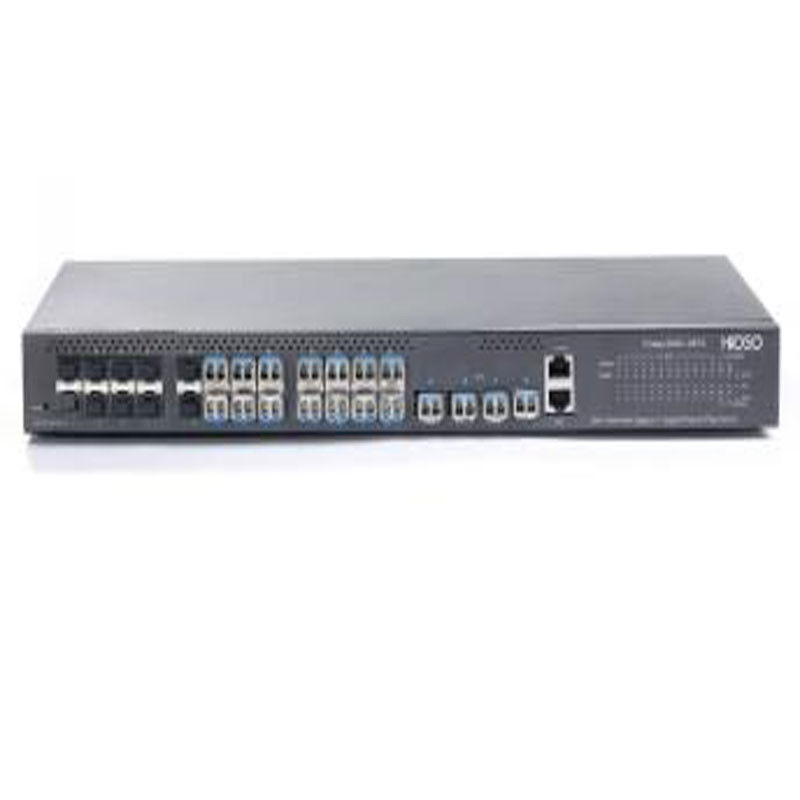

SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch 4
