Industrial 1310nm WEB SNMP Fiber Optic Switch 8 Port 8K MAC Learning fiber optic ethernet switch

Industrial 1310nm WEB SNMP Fiber Optic Switch 8 Port 8K MAC Learning fiber optic ethernet switch
Industrial 1310nm WEB SNMP Fiber Optic Switch 8 Port 8K MAC Learning fiber optic ethernet switch Industrial 1310nm WEB SNMP Fiber Optic Switch 8 Port 8K MAC Learning fiber optic ethernet switch Industrial 1310nm WEB SNMP Fiber Optic Switch 8 Port 8K MAC Learning fiber optic ethernet switch Industrial 1310nm WEB SNMP Fiber Optic Switch 8 Port 8K MAC Learning fiber optic ethernet switch

Large Image :  Industrial 1310nm WEB SNMP Fiber Optic Switch 8 Port 8K MAC Learning fiber optic ethernet switch

Product Details:
Place of Origin: China
Brand Name: HiOSO
Certification: CCC
Model Number: FOWAY1509FCM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: 40X35X15 cm
Delivery Time: 2-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000psc/month
Contact Now

Industrial 1310nm WEB SNMP Fiber Optic Switch 8 Port 8K MAC Learning fiber optic ethernet switch

Description
Type: FTTx Solutions Ports: 8 1000M SFP Ports+1 1000M Combo Uplink
Wavelength: 850nm/1310nm/1490nm/1550nm Power: 7.9W
Operating Temperature: -10~60℃ Dimension: 28mm (H)*193mm(W)*119mm (D)
Warranty: 3 Years
High Light:

WEB SNMP Fiber Optic Switch

,

1310nm Fiber Optic Switch

,

WEB SNMP switch fiber optic 8 port

  • FOWAY1509FCM

  • 8 1000M SFP + 1 Combo Uplink Fiber Switch

Industrial 1310nm WEB SNMP Fiber Optic Switch 8 Port 8K MAC Learning fiber optic ethernet switch 0
Feature
✔Support SFP hot swap
✔Support DHCP, PPPoE, ACL, LLDP
✔Support 8K MAC learning, 1Mbit storage and forward cache space, 4.6G back plane bandwidth,1632 byte large frame forwarding
✔Metal casing design (support to hang on the wall), better for heat dissipation
Technical Specification
Parameter
Specification


Standard
IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit
Ethernet, IEEE802.1d Spanning Tree,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1q Qos,IEEE802.3ad
Trunk,IEEE802.3X Flow Control
Wavelength
850nm/1310nm/1490nm/1550nm



Distance
100M SFP multi-mode: 2Km
Single-mode: 25/40/60/80/100/120Km
Single-fiber single-mode: 25/40/60/80/100/120Km
1000M SFP multi-mode:220m (fiber 62.5/125μm) / 550m (fiber 50/125μm)
Single-mode:10/20/40/60/80/100/120Km
Single-fiber single-mode: 10/20/40/60/80/100/120Km
Cat5:100m

Port
8 1000M SFP fiber ports: 1000Mbps
1 Gigabit Combo port:1 Gbps, 100M/1000M SFP&10/100/1000M RJ45
Management
WEB / SNMP
MAC
8K
Buffer memory space
1Mbit
Bit error rate
<1/1000000000
MTBF
100000 hours
Power
DC12V/AC220V
Power consumption
7.9W
Working temperature
-10~60℃
Storage temperature
-40~80℃
Humidity
5%~90% non-condensing
Dimension
28mm (H)×193mm(W)×119mm (D)
Details Images

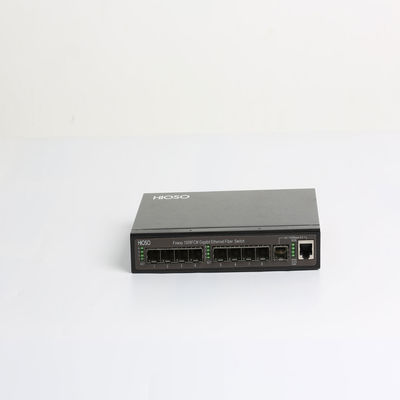

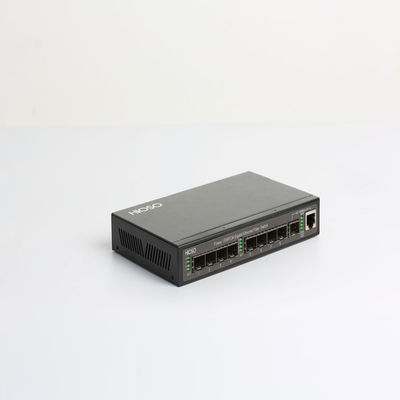

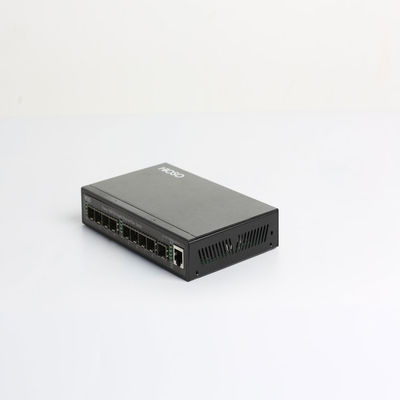

Industrial 1310nm WEB SNMP Fiber Optic Switch 8 Port 8K MAC Learning fiber optic ethernet switch 1
