Product Details:
|
| Product Name: | Fiber Media Converter | Wavelength: | 850nm/1310nm/1550nm |
|---|---|---|---|
| Standard: | IEEE802.3 10Base-T | Access Mode: | 10/100/1000Mbps |
| Delay: | <1us | Mac: | 1K |
| High Light: | 1 FX Port fiber optic to ethernet,CCC approval fiber optic to ethernet,1 FX Port ethernet to optical converter |
||

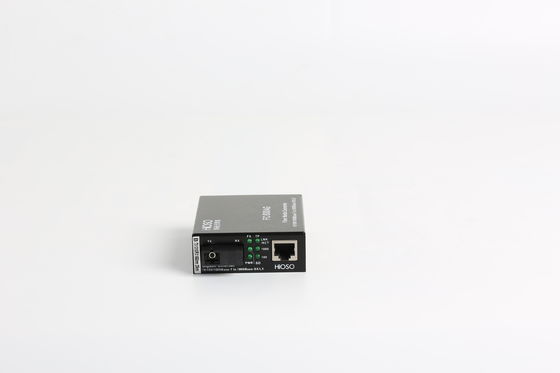

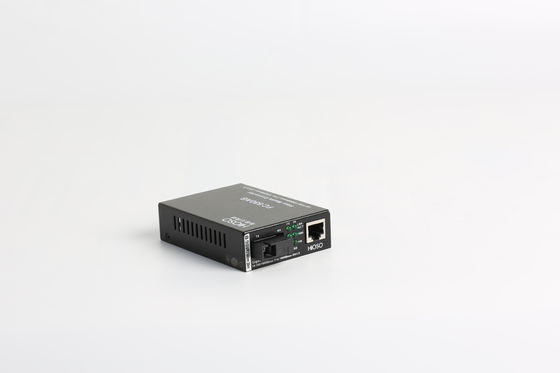

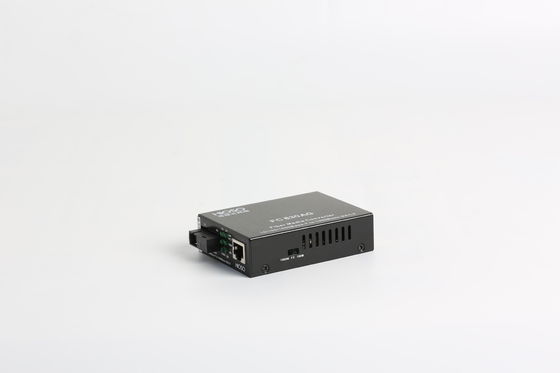

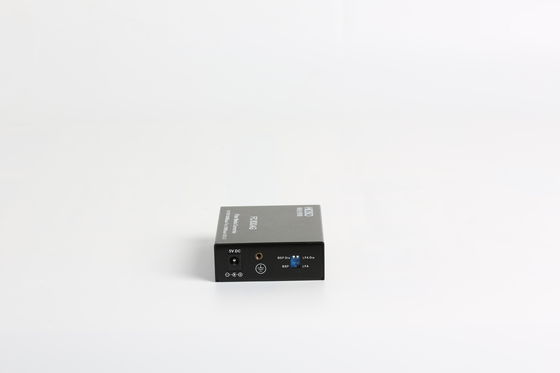

Fiber Media Converter 1 Fe + 1 Fx Port Gigabit Fast Ethernet Converter
Charater
Technical Specifications
| Parameters | Specifications |
| Access mode | 10/100/1000Mbps |
| Wavelength | 850nm/1310nm/1550nm |
| Port | One RJ45 port: Connected to STP/UTP category-5 twisted pairs One fiber port: Multi-mode – SC (fiber size: 50,62.5/125μm) Single mode – SC fiber port (fiber size: 9/125μm) Single-fiber single-mode – SC fiber port (fiber size: 9/125 μ m) |
| Conversion mode | Medium conversion, storing and forwarding/straight-through |
| MAC address table | I K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half-duplex state: back pressure mode |
| Delay | <1 us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | POWER (power), FX LINK/ACT (fiber link/action) FDX (FX full-duplex mode), TP LINK/ACT (twisted pair link/action); TP 100 (twisted pair: transmission rate of 100M);FX 100 (fiber: transmission rate of 100M) (external power) |
| Power | DC5V 1A (external), AC220V / DC48V |
| Power consumption | <2.5W |
